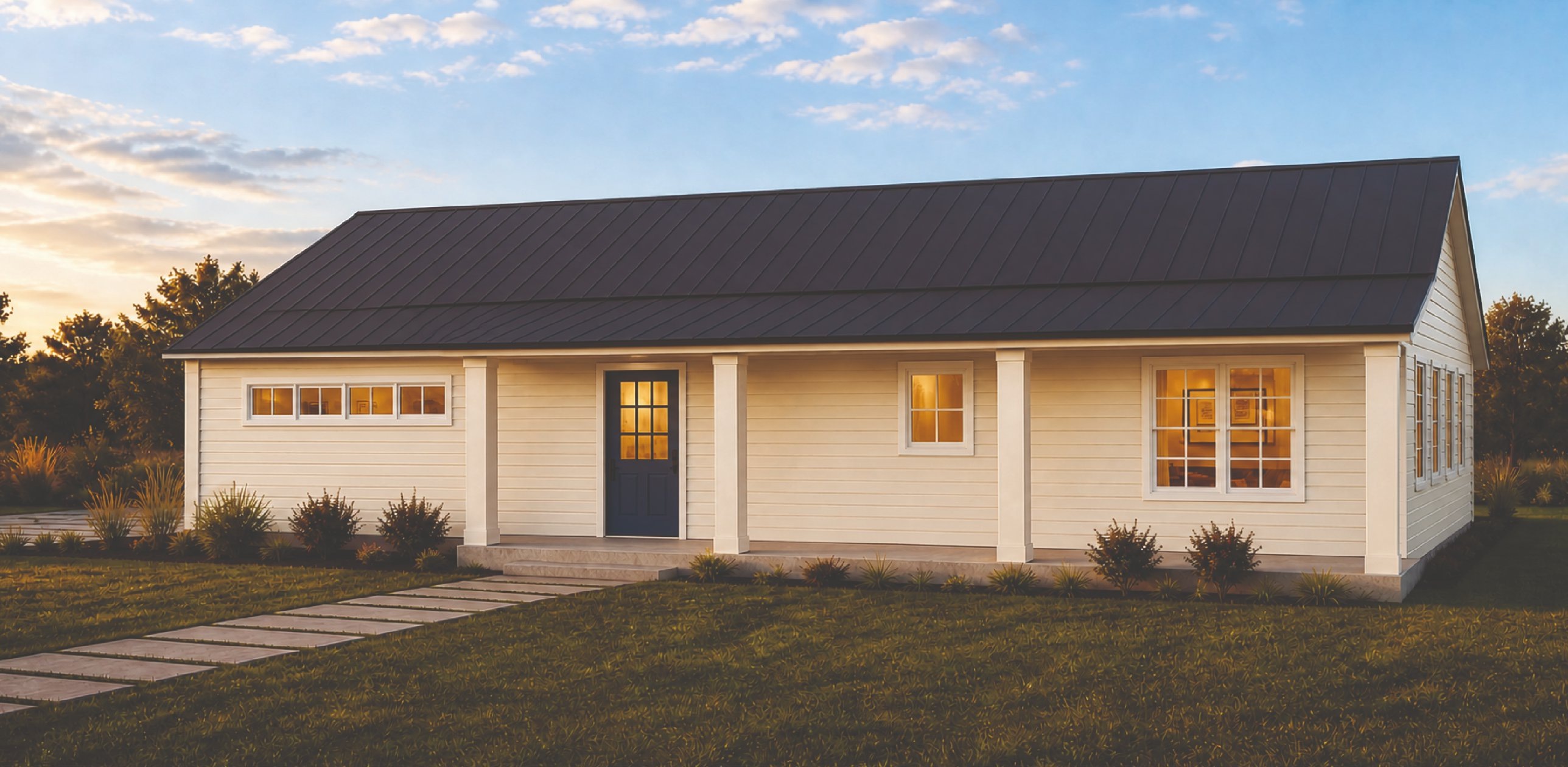

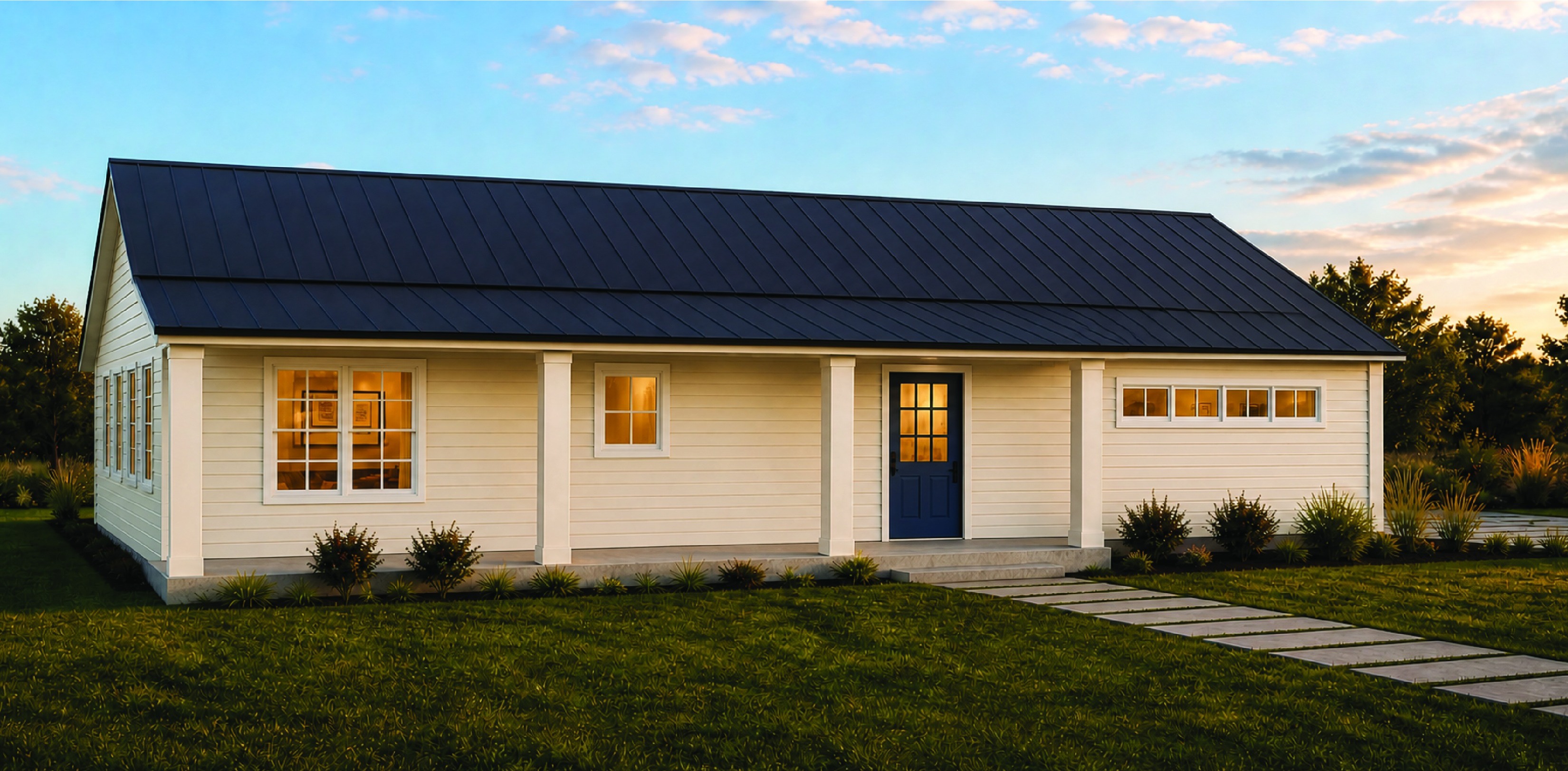

Mill Wheel barndominium plan, front exterior at dusk

NB-T2-4340-SPN-05 · New

Mill Wheel

Covered porches front and back, a mudroom entry and a two car garage with a workshop.

Heated sq ft1,706
Beds3
Baths2
Stories1
Garage bays2
Width40 ft
Depth63 ft
Clear span40 ft

Buy the set

$1,695

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Package and license

Drawn and sent in 3 business days

Add ons

When you get it

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Total$1,695

Free preview

Every plan in this catalog previews free, watermarked floor plan, single elevation, and the basic spec page, sent to your email. Look at the sheets before you spend a dollar.

You are purchasing design documents. This is not a construction bid, a cost guarantee, or an agreement to build.

Not sure yet?

See all four elevations, the full layout, and the complete spec sheet. Free, in about a minute.

Preview is not dimensioned and is not buildable.

Build difficulty

Straightforward

Straightforward. Single ridge and a simple roofline, but the 40 foot span still calls for engineered trusses and a lift to set them.

A small experienced crew can frame this. Slab, posts, and trusses are the whole structural story.

About this plan

Mill Wheel is built around easy daily living. A covered porch runs across the front of the house and a second one runs across the back, so there is always a shady side. The front door opens into an entry with a mudroom beside it that connects straight to the two car garage, which has a 10 by 7 workshop and the mechanical room at the back. Past the entry, a 21 by 17 living room has double doors out to the back porch and flows into the dining room and a kitchen with an island. A 7 by 9 walk in pantry and the laundry room sit just off the kitchen. The primary suite has a walk in closet and a bath with a shower and a double vanity, and Bedrooms 2 and 3 share a hall bath with its own double vanity. Outside it is lap siding with square porch columns under a metal roof. Good to know: the bedrooms are not split, and the workshop is a small room inside the garage, not a full shop.

The structure is post frame, so the load path is simple and the interior walls are mostly partitions. That matters when you want to move a wall later, and it matters when a framing crew prices the shell. 3 bedrooms and 2 baths sit on one level, with 2 garage bays.

What you buy here is the document set. It is not a home, not a bid, and not a price to build. Your cost depends on your county, your site, your finishes, and who swings the hammer.

Features

Bedroom layout

  • Master on Main

Kitchen

  • Kitchen Island
  • Walk In Pantry
  • Open Floor Plan

Extra rooms

  • Mud Room

Outdoor living

  • Front Porch
  • Rear Porch

Utility

  • Laundry on Main

Accessibility

  • Single Level Living

DIY friendly

  • Rectangular Footprint
  • Simple Roofline
  • Single Ridge

Work and storage

  • Workshop

Full specifications

Plan number
NB-T2-4340-SPN-05
Style
Traditional
Heated square feet
1,706
Porch square feet
683
Total under roof
3,202
Bedrooms
3
Bathrooms
2
Half baths
0
Stories
1
Loft
No
Building width
40 ft
Building depth
63 ft
Clear span
40 ft
Wall height
9 ft
Ridge height
17 ft
Roof pitch
5:12
Framing
Post Frame
Garage bays
2
Available foundations
Monolithic Slab, Frost Protected Shallow, Crawlspace, Pier And Beam, Basement, Walkout Basement
License
Single Build License (SB-1)

What is in the set

Included

  • Foundation plan
  • Dimensioned floor plans
  • All exterior elevations
  • Building sections
  • Roof plan
  • Electrical layout
  • Typical wall sections
  • Door and window schedule

Not included

  • Engineer or architect stamp
  • Site or plot plan
  • Mechanical and plumbing design
  • Truss engineering
  • Energy calculations
  • Structural calculations for your specific wind, seismic, or snow load
Why your county may require more, and how to get it

Cost to build

National reported range, not a quote

$155 – $285 per heated square foot

$264,430 – $486,210

Band set Jun 1, 2026

This is a national range based on reported completed projects, not a quote. Your actual cost depends on your county, your site, your finishes, and who swings the hammer.

Modify this plan

Most buyers change something. Move a wall, stretch the shop, flip the entry, swap the framing. Send us what you want and we come back with a written scope and a dated range before any drawing starts.

Changes to this plan are priced by tier and drawn by American Barndos. If what you want is closer to a custom design — a different footprint, a different span, something drawn around your site — the request goes to National Barndos, and starts with a one-hour design consultation, $497. The same form covers both; pick the scope that fits.
