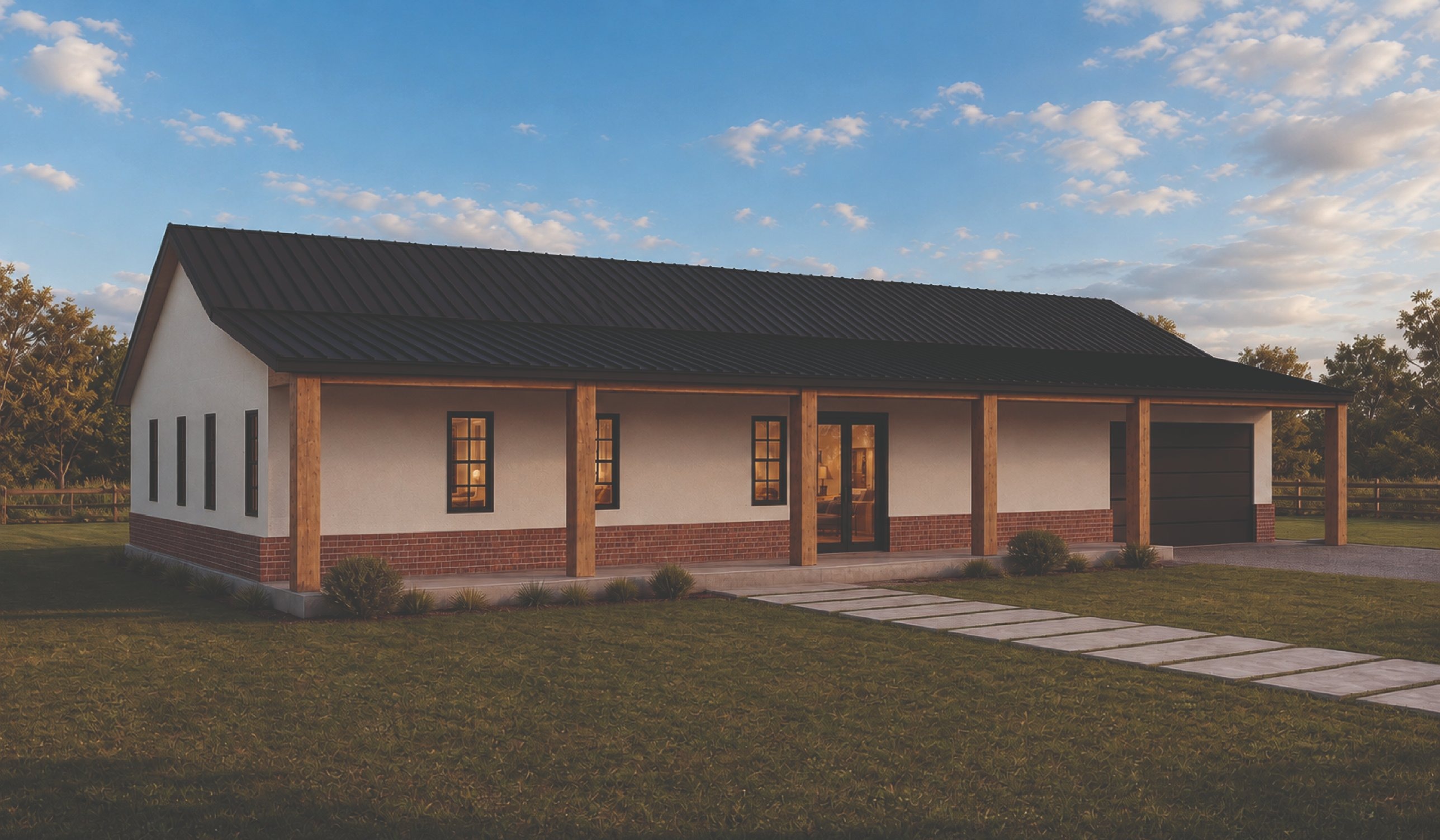

Windmill barndominium plan, front exterior at dusk

NB-T2-5628-SPN-08 · New

Windmill

Front and back porches, a two car garage and a real mudroom drop zone.

Heated sq ft1,892
Beds3
Baths2.5
Stories1
Garage bays2
Width35 ft
Depth77 ft
Clear span35 ft

Buy the set

$1,695

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Package and license

Drawn and sent in 3 business days

Add ons

When you get it

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Total$1,695

Free preview

Every plan in this catalog previews free, watermarked floor plan, single elevation, and the basic spec page, sent to your email. Look at the sheets before you spend a dollar.

You are purchasing design documents. This is not a construction bid, a cost guarantee, or an agreement to build.

Not sure yet?

See all four elevations, the full layout, and the complete spec sheet. Free, in about a minute.

Preview is not dimensioned and is not buildable.

Build difficulty

Demanding

Demanding. Single ridge, but the shop doors and headers still need engineered headers sized by your supplier.

Plan on a general contractor or a very experienced crew for the shell. The rest is manageable.

About this plan

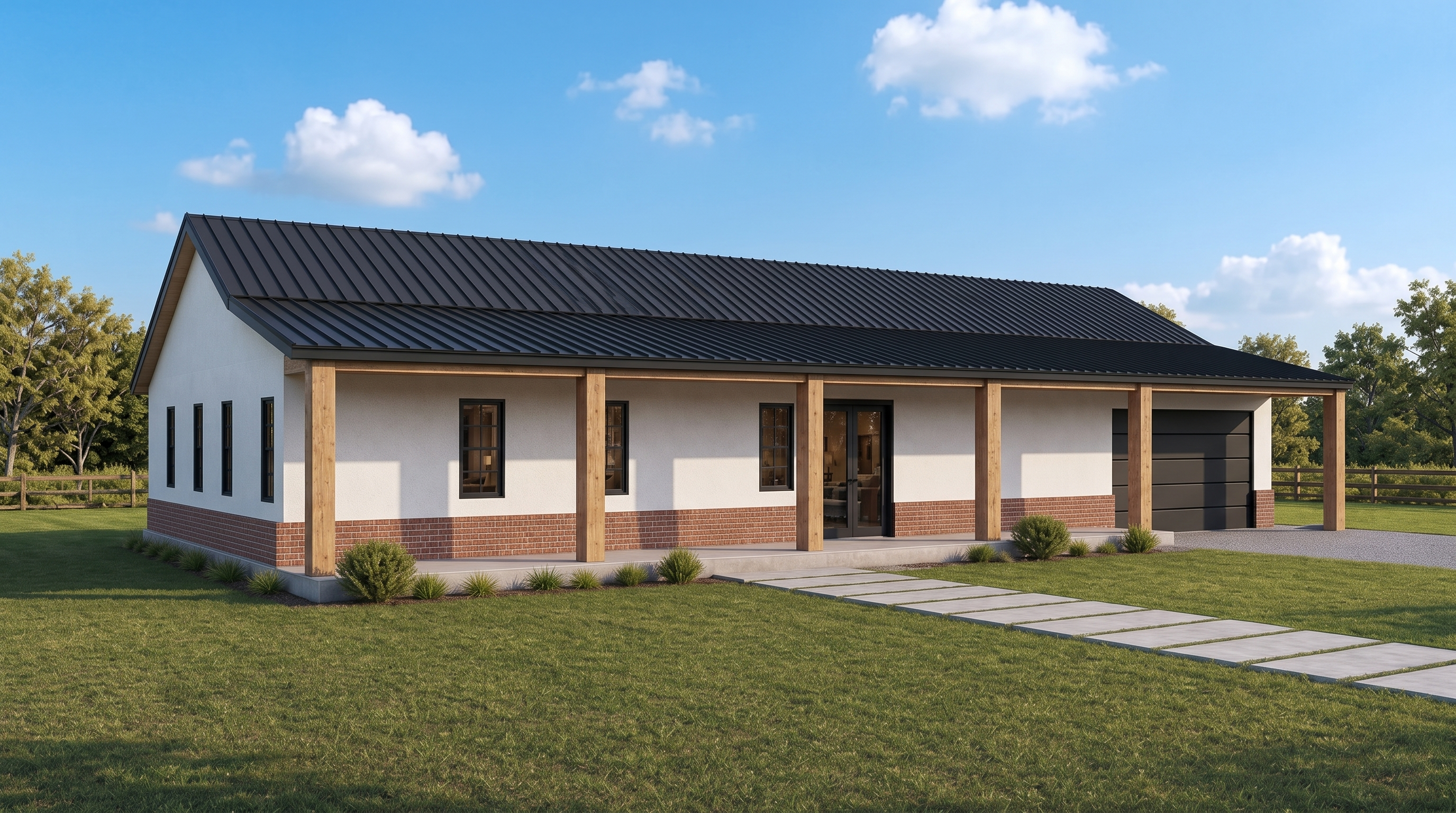

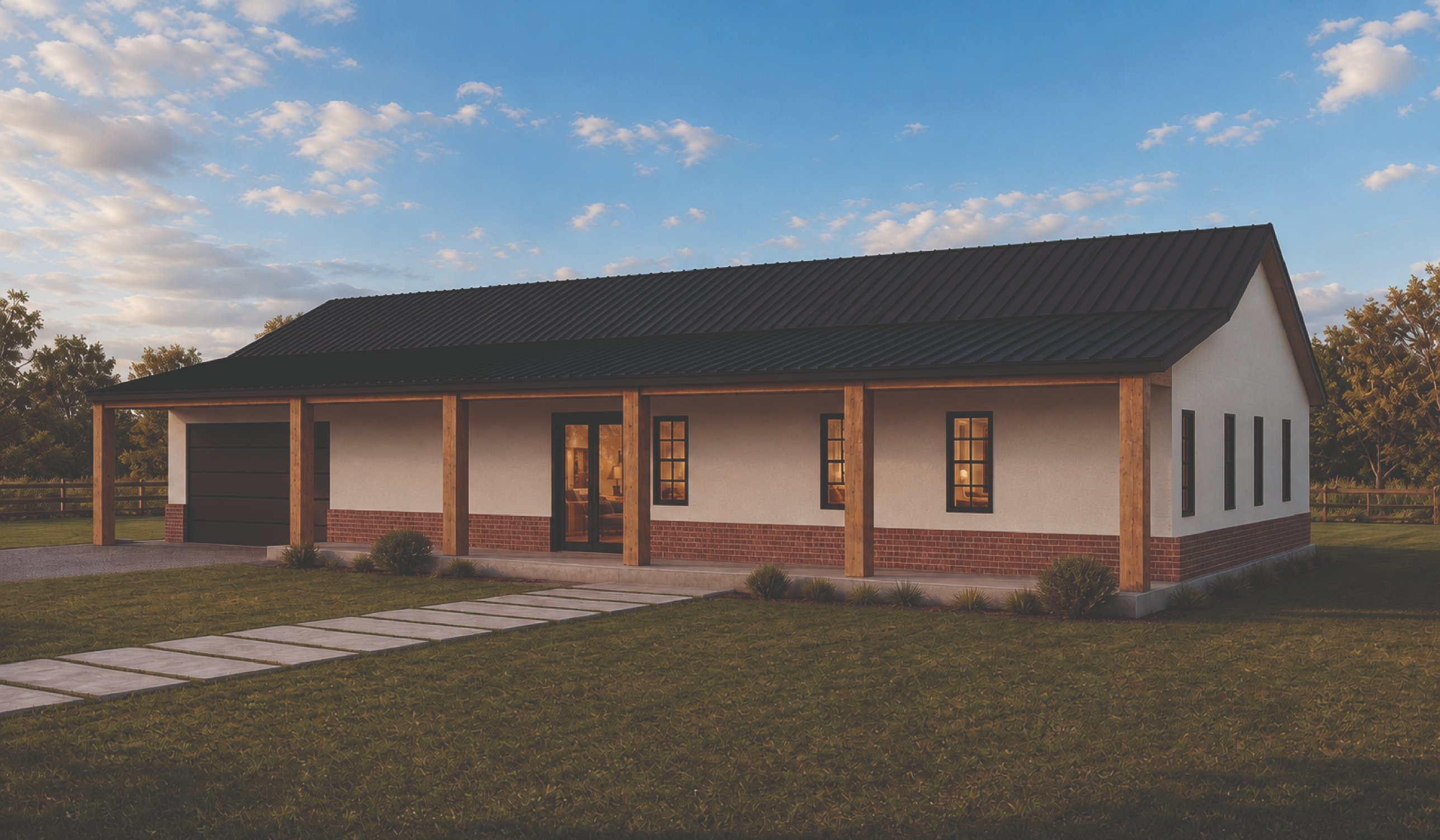

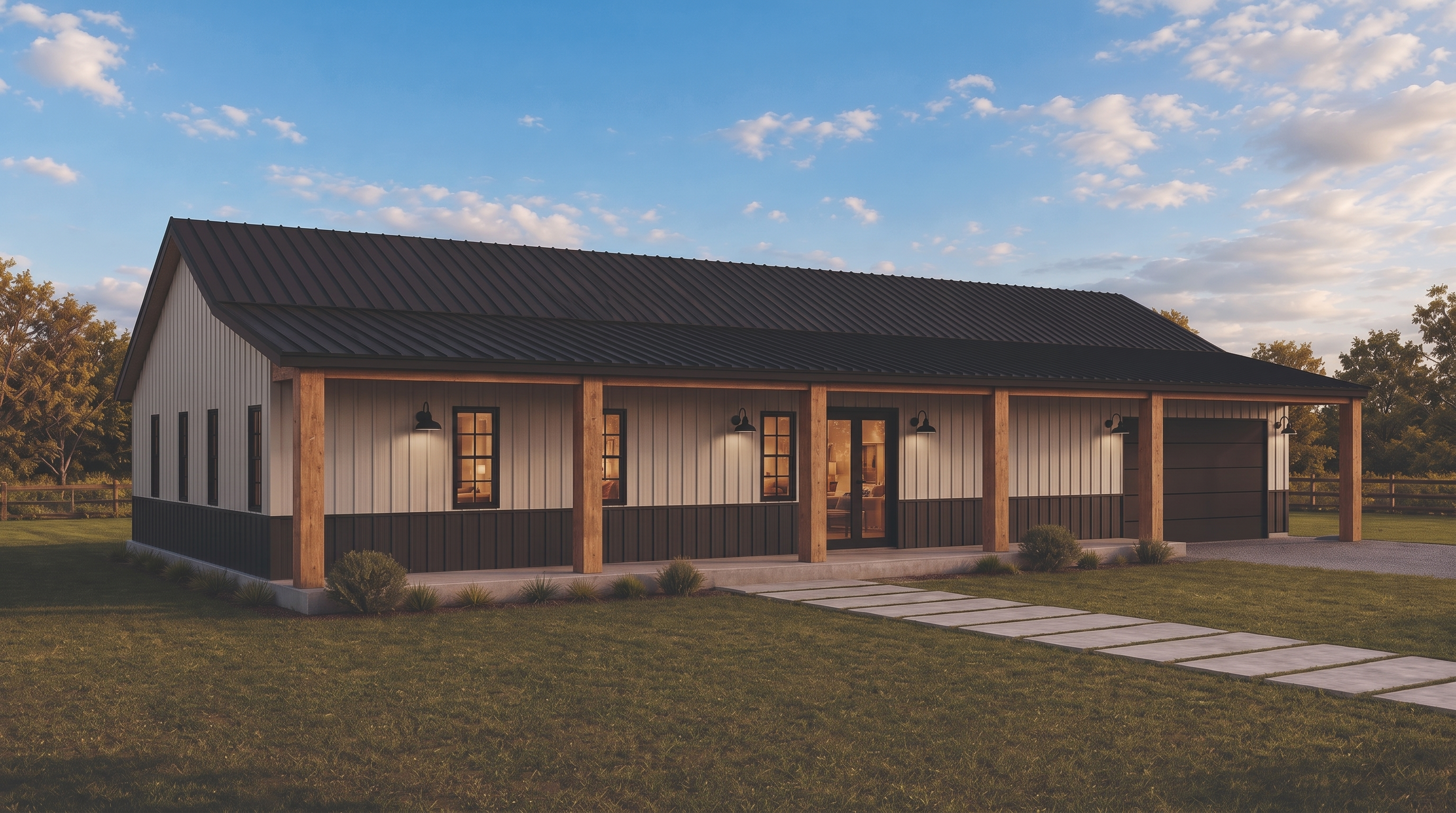

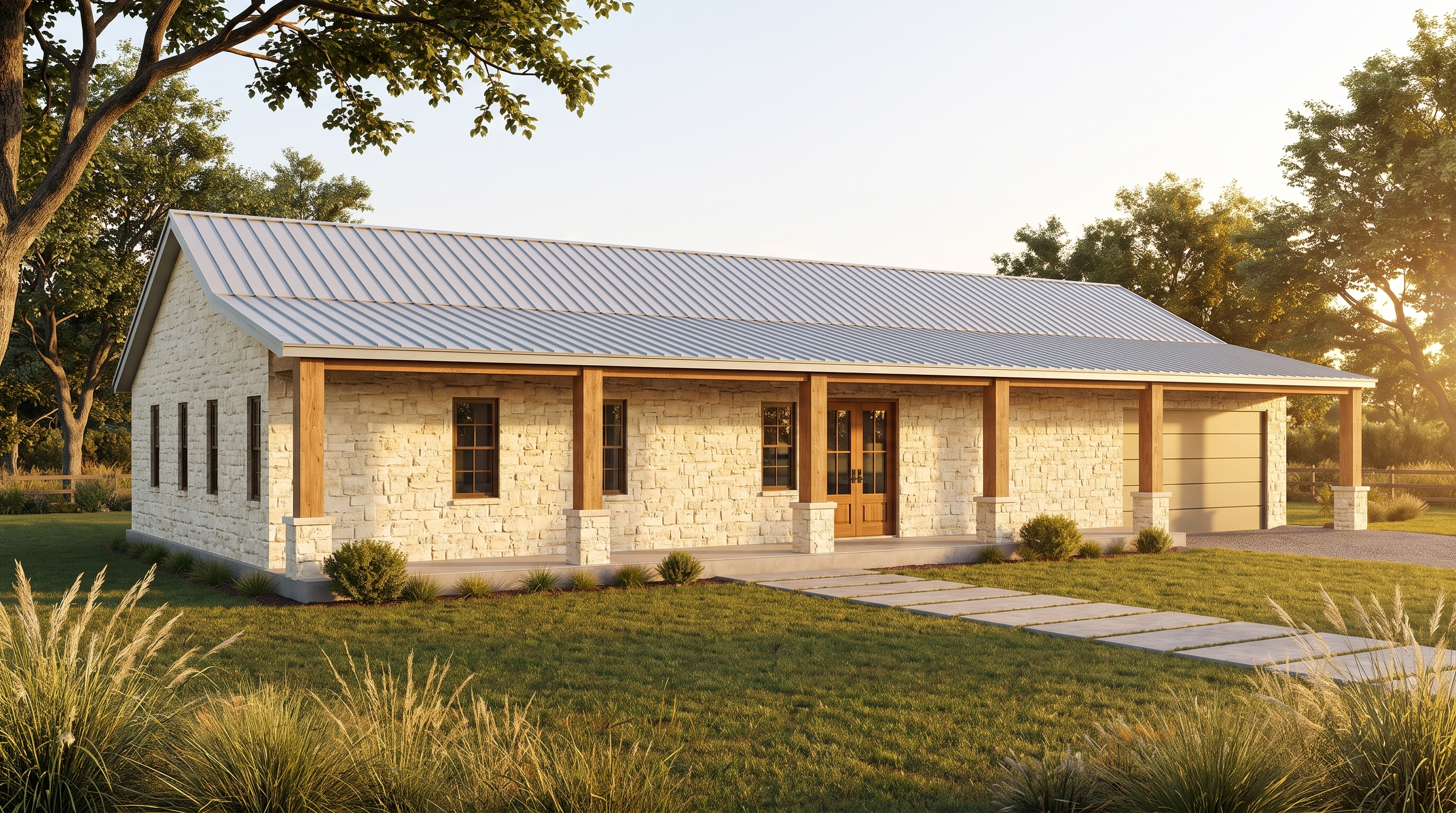

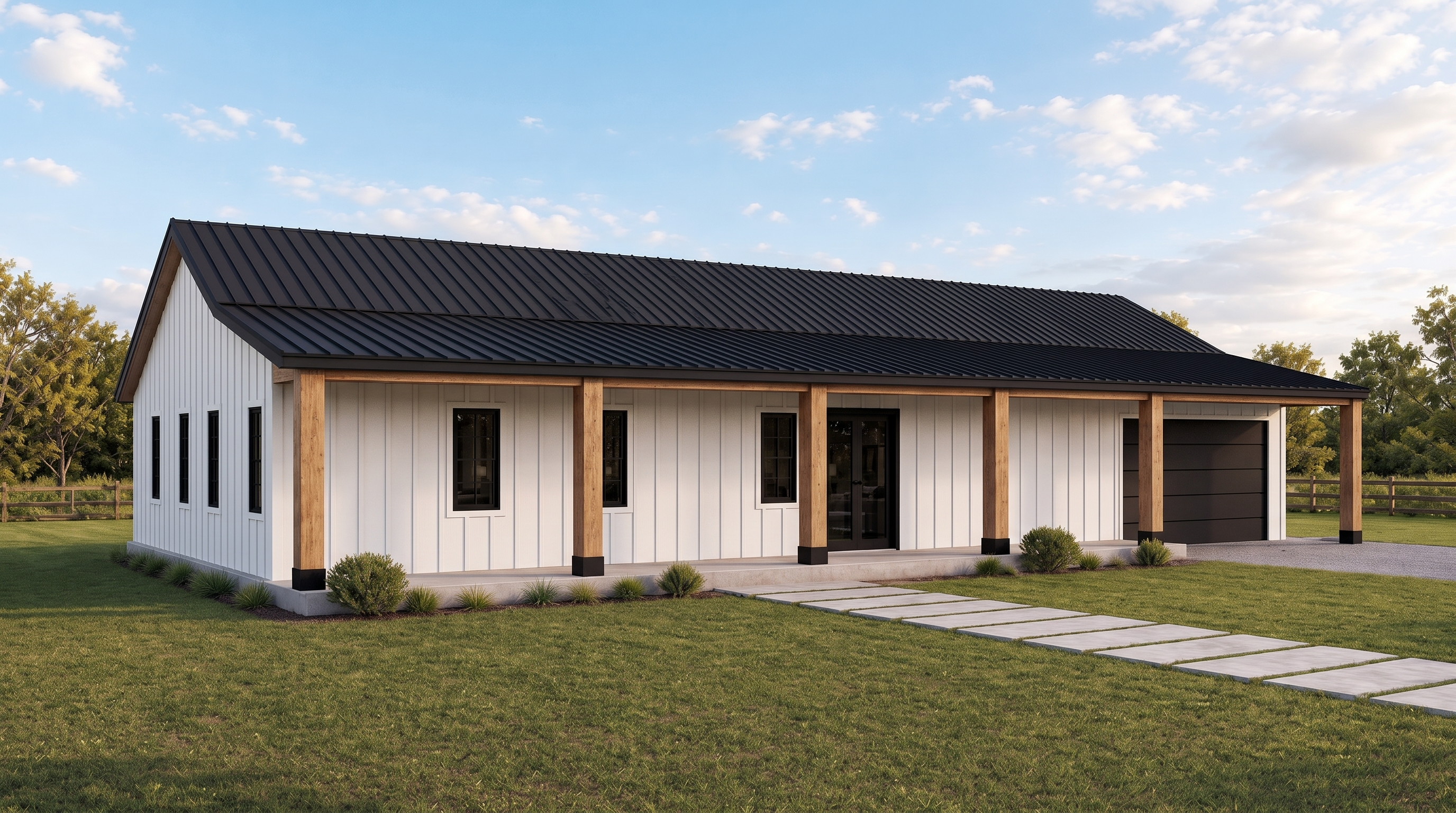

Windmill is a single story barndominium built for the way country families actually come and go, with a covered porch across the front, a second covered porch out back, and an attached two car garage that drops you straight into a mudroom and laundry. Walk in through the double front doors and the living room, dining room and kitchen open up as one big space. The kitchen has a three seat island, a range wall and a sink under the back window, and the dining room opens through double doors onto the rear porch. The primary suite sits on its own side of the house with a walk-in closet and a private bath with a double vanity, a walk-in shower and a separate toilet room. Bedrooms two and three sit at the opposite end and share a full hall bath, and a powder room off the living area keeps guests out of the bedroom wings. Outside it reads warm and classic: a dark standing seam metal roof, light walls over a brick wainscot, and cedar timber posts. Good to know: the front doors open straight into the living room with no foyer, the mechanical room is reached from the garage, and there is no shop in this set.

The structure is post frame, so the load path is simple and the interior walls are mostly partitions. That matters when you want to move a wall later, and it matters when a framing crew prices the shell. 3 bedrooms and 2.5 baths sit on one level, with 2 garage bays.

What you buy here is the document set. It is not a home, not a bid, and not a price to build. Your cost depends on your county, your site, your finishes, and who swings the hammer.

Features

Bedroom layout

  • Master on Main
  • Split Bedrooms

Kitchen

  • Kitchen Island
  • Open Floor Plan

Extra rooms

  • Mud Room

Utility

  • Laundry on Main

Outdoor living

  • Front Porch
  • Rear Porch

Accessibility

  • Single Level Living

DIY friendly

  • Single Ridge

Full specifications

Plan number
NB-T2-5628-SPN-08
Style
Farmhouse
Heated square feet
1,892
Porch square feet
686
Total under roof
3,082
Bedrooms
3
Bathrooms
2
Half baths
1
Stories
1
Loft
No
Building width
35 ft
Building depth
77 ft
Clear span
35 ft
Wall height
10 ft
Ridge height
16 ft
Roof pitch
4:12
Framing
Post Frame
Garage bays
2
Available foundations
Monolithic Slab, Frost Protected Shallow, Crawlspace, Pier And Beam, Basement, Walkout Basement
License
Single Build License (SB-1)

What is in the set

Included

  • Foundation plan
  • Dimensioned floor plans
  • All exterior elevations
  • Building sections
  • Roof plan
  • Electrical layout
  • Typical wall sections
  • Door and window schedule

Not included

  • Engineer or architect stamp
  • Site or plot plan
  • Mechanical and plumbing design
  • Truss engineering
  • Energy calculations
  • Structural calculations for your specific wind, seismic, or snow load
Why your county may require more, and how to get it

Cost to build

National reported range, not a quote

$155 – $285 per heated square foot

$293,260 – $539,220

Band set Jun 1, 2026

This is a national range based on reported completed projects, not a quote. Your actual cost depends on your county, your site, your finishes, and who swings the hammer.

Modify this plan

Most buyers change something. Move a wall, stretch the shop, flip the entry, swap the framing. Send us what you want and we come back with a written scope and a dated range before any drawing starts.

Changes to this plan are priced by tier and drawn by American Barndos. If what you want is closer to a custom design — a different footprint, a different span, something drawn around your site — the request goes to National Barndos, and starts with a one-hour design consultation, $497. The same form covers both; pick the scope that fits.
