Pine Tree barndominium plan, front exterior at dusk

NB-T2-4060-SPN-03 · New

Pine Tree

A huge primary suite, split bedrooms and a two car garage with a full workshop wall.

Heated sq ft2,160
Beds3
Baths2.5
Stories1
Garage bays2
Width40 ft
Depth82 ft
Clear span40 ft

Buy the set

$1,695

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Package and license

Drawn and sent in 3 business days

Add ons

When you get it

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Total$1,695

Free preview

Every plan in this catalog previews free, watermarked floor plan, single elevation, and the basic spec page, sent to your email. Look at the sheets before you spend a dollar.

You are purchasing design documents. This is not a construction bid, a cost guarantee, or an agreement to build.

Not sure yet?

See all four elevations, the full layout, and the complete spec sheet. Free, in about a minute.

Preview is not dimensioned and is not buildable.

Build difficulty

Demanding

Demanding. The roof and the interior framing both take planning, but the 40 foot span still calls for engineered trusses and a lift to set them.

Plan on a general contractor or a very experienced crew for the shell. The rest is manageable.

About this plan

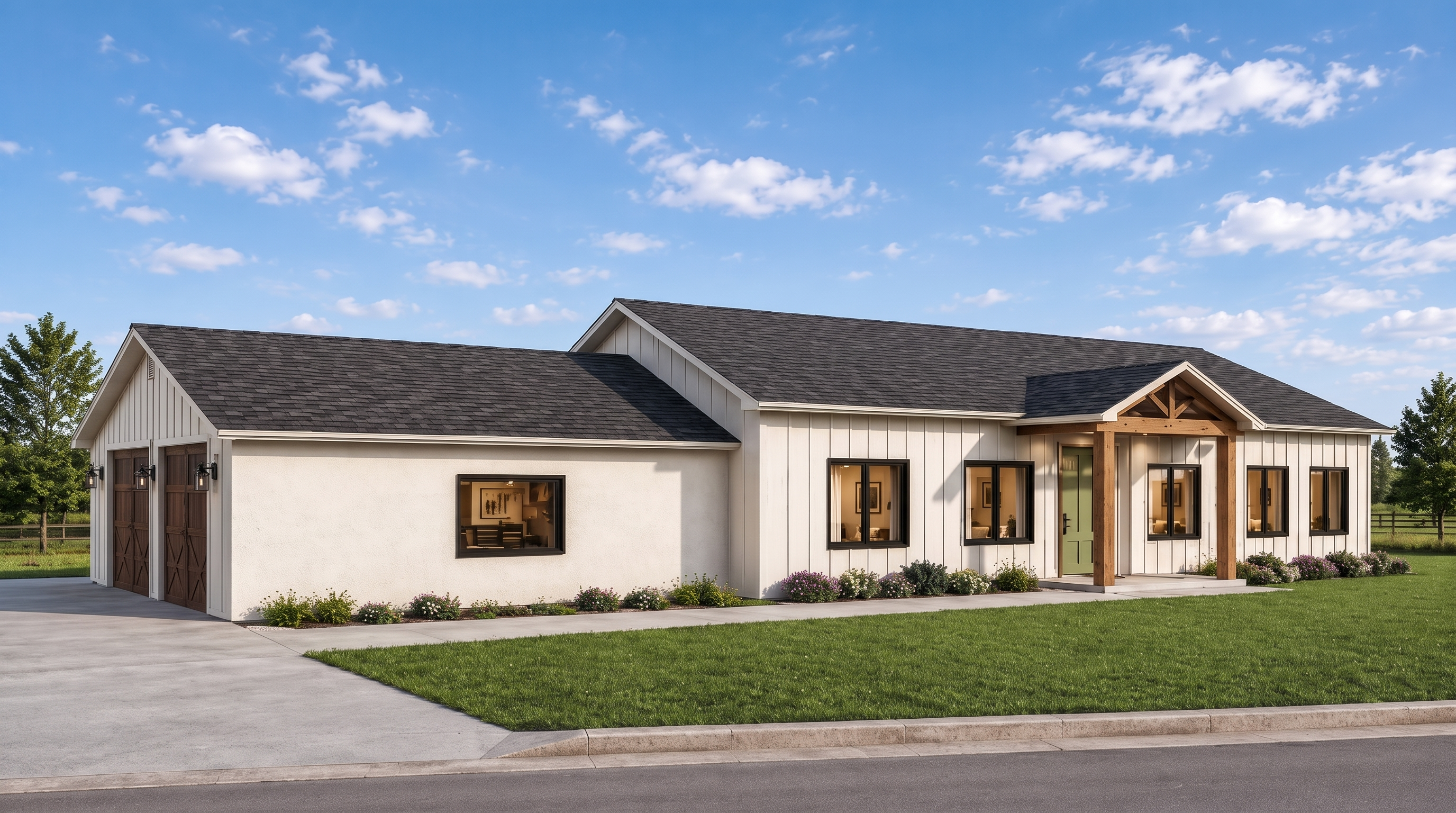

Pine Tree joins a big garage wing and a roomy house in one easy line. The garage holds two cars with a workbench running the full back wall, and you come in through a mudroom with lockers and a bench. A small covered porch with a timber gable marks the front door, and the entry opens into a living room, dining room and kitchen that run front to back. The kitchen has a long island that seats four, a walk in pantry and a laundry room right beside it, and a door off the dining room leads out to a back deck. The primary suite is the showpiece: a 15 by 23 bedroom with room for a sitting area, a 7 by 15 bath with a tub and a separate shower, and an 8 by 15 walk in closet. Bedrooms 2 and 3 sit on the garage side with a full hall bath and a powder room nearby. Outside it is white board and batten with a stucco garage wing. Good to know: the front porch is small and there is no foyer.

The structure is post frame, so the load path is simple and the interior walls are mostly partitions. That matters when you want to move a wall later, and it matters when a framing crew prices the shell. 3 bedrooms and 2.5 baths sit on one level, with 2 garage bays.

What you buy here is the document set. It is not a home, not a bid, and not a price to build. Your cost depends on your county, your site, your finishes, and who swings the hammer.

Features

Bedroom layout

  • Master on Main
  • Split Bedrooms

Kitchen

  • Kitchen Island
  • Walk In Pantry
  • Open Floor Plan

Extra rooms

  • Mud Room

Outdoor living

  • Front Porch
  • Rear Porch

Utility

  • Laundry on Main

Accessibility

  • Single Level Living

Work and storage

  • Workshop

Full specifications

Plan number
NB-T2-4060-SPN-03
Style
Farmhouse
Heated square feet
2,160
Porch square feet
246
Total under roof
3,526
Bedrooms
3
Bathrooms
2
Half baths
1
Stories
1
Loft
No
Building width
40 ft
Building depth
82 ft
Clear span
40 ft
Wall height
9 ft
Ridge height
19 ft
Roof pitch
6:12
Framing
Post Frame
Garage bays
2
Available foundations
Monolithic Slab, Frost Protected Shallow, Crawlspace, Pier And Beam, Basement, Walkout Basement
License
Single Build License (SB-1)

What is in the set

Included

  • Foundation plan
  • Dimensioned floor plans
  • All exterior elevations
  • Building sections
  • Roof plan
  • Electrical layout
  • Typical wall sections
  • Door and window schedule

Not included

  • Engineer or architect stamp
  • Site or plot plan
  • Mechanical and plumbing design
  • Truss engineering
  • Energy calculations
  • Structural calculations for your specific wind, seismic, or snow load
Why your county may require more, and how to get it

Cost to build

National reported range, not a quote

$155 – $285 per heated square foot

$334,800 – $615,600

Band set Jun 1, 2026

This is a national range based on reported completed projects, not a quote. Your actual cost depends on your county, your site, your finishes, and who swings the hammer.

Modify this plan

Most buyers change something. Move a wall, stretch the shop, flip the entry, swap the framing. Send us what you want and we come back with a written scope and a dated range before any drawing starts.

Changes to this plan are priced by tier and drawn by American Barndos. If what you want is closer to a custom design — a different footprint, a different span, something drawn around your site — the request goes to National Barndos, and starts with a one-hour design consultation, $497. The same form covers both; pick the scope that fits.
