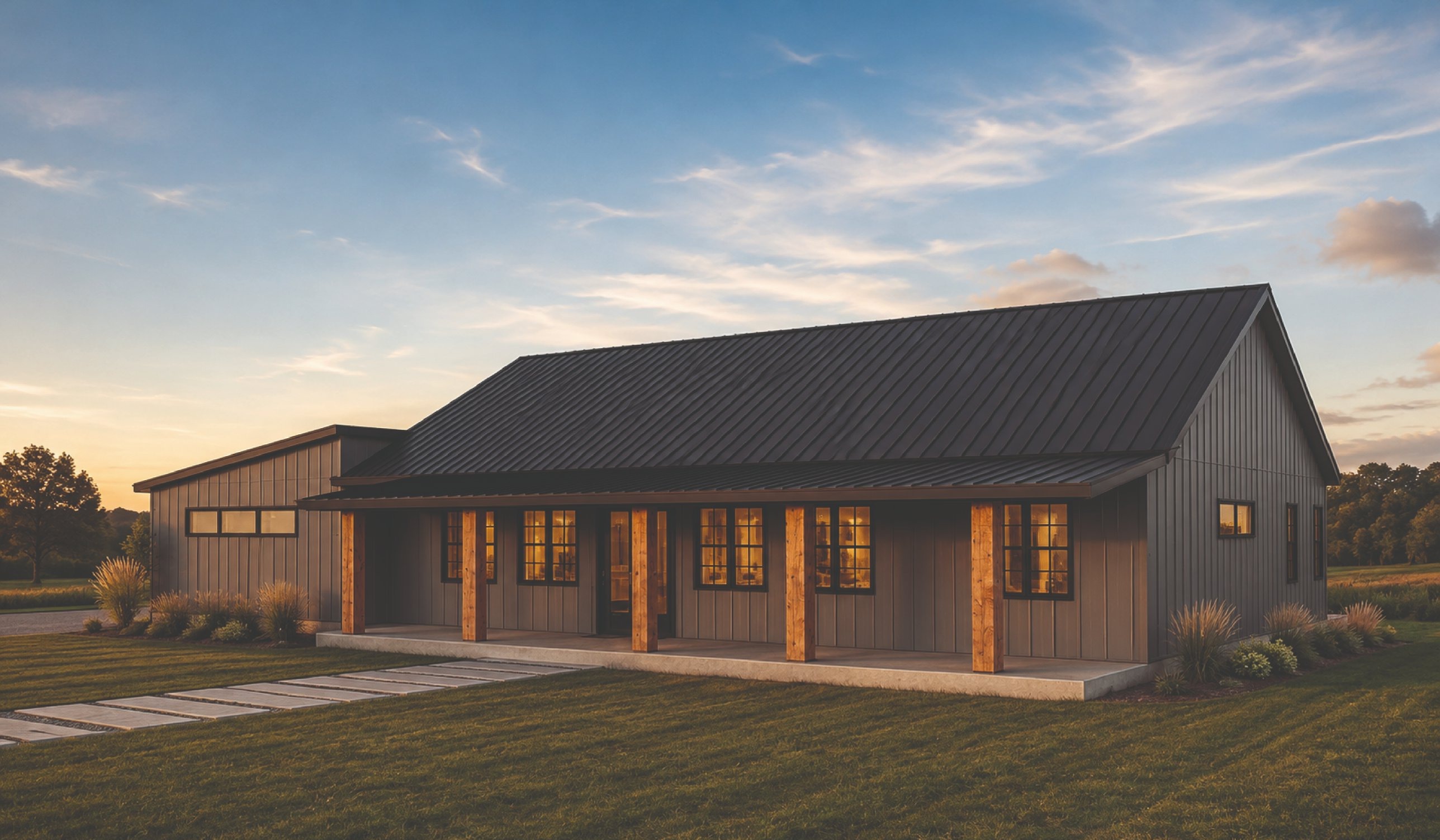

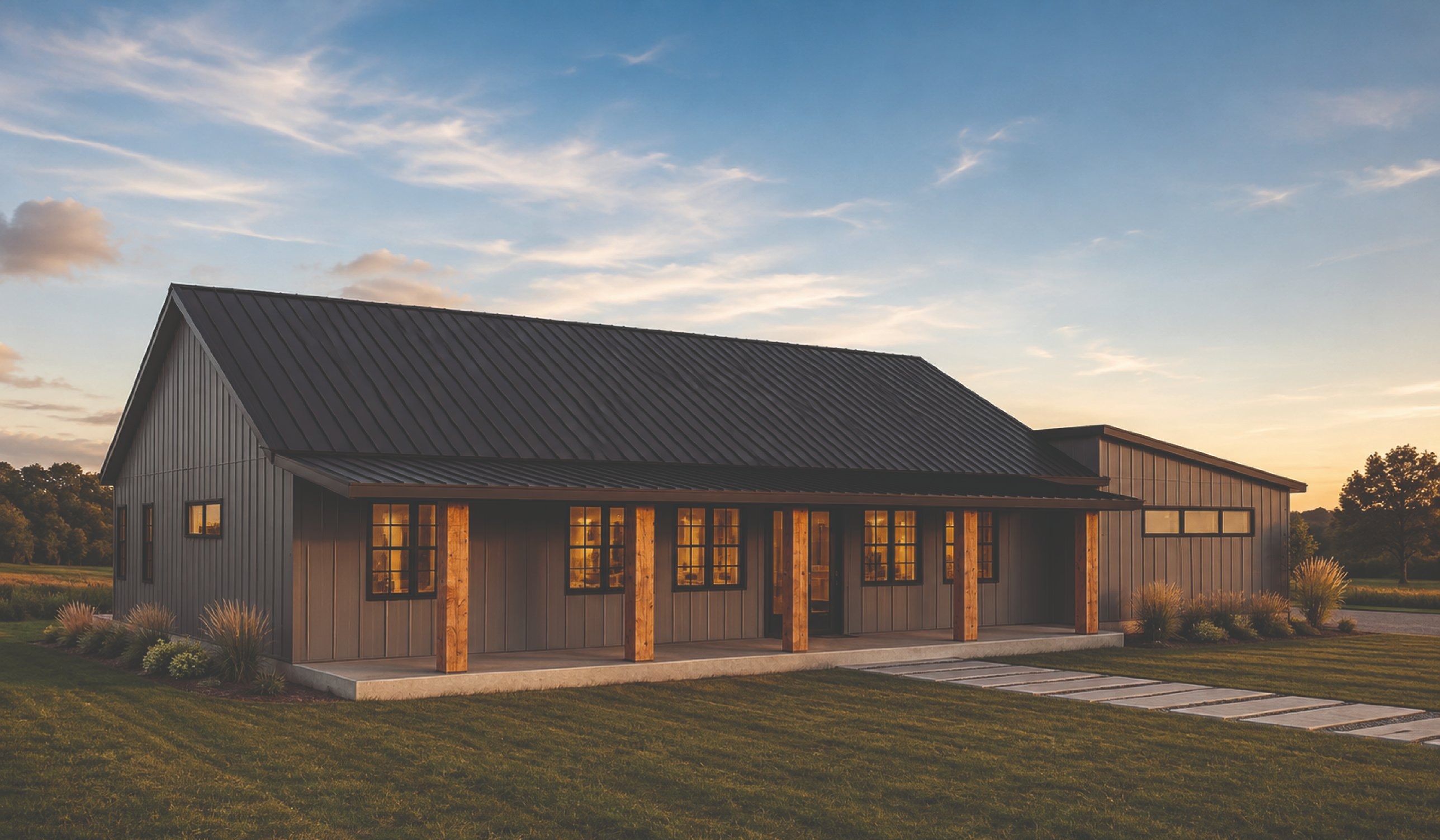

Crossroads barndominium plan, front exterior at dusk

NB-T2-5842-SPN-23 · New

Crossroads

A four car garage with a workshop, porches front and back, and a straight shot through the middle.

Heated sq ft2,550
Beds4
Baths3.5
Shop sq ft174
Stories1
Garage bays4
Width42 ft
Depth81 ft
Clear span42 ft

Buy the set

$1,695

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Package and license

Drawn and sent in 3 business days

Add ons

When you get it

Drafted to order. Your full construction set is finalized after purchase and emailed to you, typically within 10 business days.

Total$1,695

Free preview

Every plan in this catalog previews free, watermarked floor plan, single elevation, and the basic spec page, sent to your email. Look at the sheets before you spend a dollar.

You are purchasing design documents. This is not a construction bid, a cost guarantee, or an agreement to build.

Not sure yet?

See all four elevations, the full layout, and the complete spec sheet. Free, in about a minute.

Preview is not dimensioned and is not buildable.

Build difficulty

Demanding

Demanding. A rectangular footprint, but the 42 foot span still calls for engineered trusses and a lift to set them.

Plan on a general contractor or a very experienced crew for the shell. The rest is manageable.

About this plan

Crossroads is built around one clear line: walk in the front doors and you can see straight through the house to the back porch, with covered porches running the full 60 feet on both sides. Inside, the living room, dining and kitchen open up as one big room, with a long island, a range wall and the sink under the front windows. Tucked behind the kitchen you get a scullery, a walk in pantry, a laundry room and a mudroom that leads right into the garage. The primary suite sits on the far end with a walk in closet, a double vanity, a soaking tub and a walk in shower, and a media room sits right off the living room. Three more bedrooms line the back of the house alongside an office, two full baths and a powder room. Then there is the garage wing: room for four cars, plus a 12 by 14 workshop and its own mechanical room. Good to know: there is no formal foyer, the front doors open straight into the living space, and the bedrooms are grouped together rather than split.

Crossroads is drawn at a 42 foot clear span and 81 feet long, which puts 2,550 square feet of heated living beside 174 square feet of shop under the same roof line. The shop is treated as a real room here, not leftover space: 0 overhead doors, 10 foot side walls, and a 5:12 pitch that keeps the ridge at 18.8 feet.

The structure is post frame, so the load path is simple and the interior walls are mostly partitions. That matters when you want to move a wall later, and it matters when a framing crew prices the shell. 4 bedrooms and 3.5 baths sit on one level, with 4 garage bays.

What you buy here is the document set. It is not a home, not a bid, and not a price to build. Your cost depends on your county, your site, your finishes, and who swings the hammer.

Features

Bedroom layout

  • Master on Main

Extra rooms

  • Office
  • Flex Room
  • Mud Room

Kitchen

  • Kitchen Island
  • Walk In Pantry
  • Butlers Pantry
  • Open Floor Plan

Outdoor living

  • Front Porch
  • Rear Porch

Utility

  • Laundry on Main

Work and storage

  • Attached Shop
  • Workshop

Accessibility

  • Single Level Living

DIY friendly

  • Rectangular Footprint

Full specifications

Plan number
NB-T2-5842-SPN-23
Style
Modern Barndo, Shop House
Heated square feet
2,550
Shop square feet
174
Porch square feet
1,050
Total under roof
4,734
Bedrooms
4
Bathrooms
3
Half baths
1
Stories
1
Loft
No
Building width
42 ft
Building depth
81 ft
Clear span
42 ft
Wall height
10 ft
Ridge height
18.8 ft
Roof pitch
5:12
Framing
Post Frame
Garage bays
4
Available foundations
Monolithic Slab, Frost Protected Shallow, Crawlspace, Pier And Beam, Basement, Walkout Basement
License
Single Build License (SB-1)

What is in the set

Included

  • Foundation plan
  • Dimensioned floor plans
  • All exterior elevations
  • Building sections
  • Roof plan
  • Electrical layout
  • Typical wall sections
  • Door and window schedule

Not included

  • Engineer or architect stamp
  • Site or plot plan
  • Mechanical and plumbing design
  • Truss engineering
  • Energy calculations
  • Structural calculations for your specific wind, seismic, or snow load
Why your county may require more, and how to get it

Cost to build

National reported range, not a quote

$155 – $285 per heated square foot

$395,250 – $726,750

Band set Jun 1, 2026

This is a national range based on reported completed projects, not a quote. Your actual cost depends on your county, your site, your finishes, and who swings the hammer.

Modify this plan

Most buyers change something. Move a wall, stretch the shop, flip the entry, swap the framing. Send us what you want and we come back with a written scope and a dated range before any drawing starts.

Changes to this plan are priced by tier and drawn by American Barndos. If what you want is closer to a custom design — a different footprint, a different span, something drawn around your site — the request goes to National Barndos, and starts with a one-hour design consultation, $497. The same form covers both; pick the scope that fits.
